fischer DuoPower 6 x 30 S screw A2 stainless steel

Name: fischer DuoPower 6 x 30 S screw A2 stainless steel
Brand: fischer

Variantet e produktit

Download of image data

Top Features

Combination of two material components for more performance.
Secure functions for solid (expansion) and hollow and panel building materials (folding/knotting).
Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole.
Best possible feedback from the anchor - you can feel that the anchor is sitting perfectly.
With suitable screws for a perfect hold.

The Duo of power and intelligence

Advantages

Two component materials for top load values and intelligent functioning depending on the substrate.
Great feedback (feel-good factor) of the plug. You can feel exactly, when the plug is installed perfectly.
The narrow plug rim prevents slipping into the drill hole.
The serrated anti-rotation feature prevents rotation in the drill hole during installation.
The greater anchorage depth of the DuoPower 6 x 50, 8 x 65 and 10 x 80 means that the plug is especially suited to fixings in hollow building materials, aerated concrete and to bridge plaster.

The fischer DuoPower offers very good hold values as a result of its 2 components: Depending on the building material, the grey components made from high quality nylon automatically activates the optimum product function (expansion, folding, knotting) for the best hold. The expansion wings of the red component support the secure expansion and offer additional security to the grey component. Easy screwing-in of the screw and correct "tightening" to close. No over-tightening of the screw. The preshaped edge on the plug head prevents the plug from slipping into the drill hole. The screws provided are optimally suited to the fischer expansion plug DuoPower.

Applications

Light shelves
Light mirror cabinets
Curtain rails
Hanging baskets
Electrical installations
Wall clocks

Building materials

Concrete
Solid brick
Solid sand-lime brick
Aerated concrete
Vertically perforated brick
Perforated sand-lime brick
Plasterboard
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete or similar
Natural stone
Solid brick made from lightweight concrete

Detajet (materialet e ndërtimit, ngarkesat, etj.) të çdo miratimi të disponueshëm zbatohen. Dokumentet e mëtejshme mund të gjenden në Qendra e shkarkimit.

Functionality

The DuoPower is suitable for pre-positioned and push-through installation.
The red expansion wings support the safe expansion and offer additional safety for the grey component.
The duo of two different materials and its multiple functional abilities (expanding, folding, and knotting) extend the range of applications to additional materials with top loads.
The required screw length is given by the plug length + fixture thickness + 1 x the screw diameter.
Suitable for wood and chipboard screws, as well as stud screws.
In the case of fixing boards, the threadless part of the screw must not be longer than the fixture.

Mounting Strip 1 Picture

1 / 4

Mounting Strip 2 Picture

1 / 5

Mounting Strip 3 Picture

1 / 4

Drill diameter ( d₀ )	6 mm
Min. drill hole depth ( h₁ )	45 mm
Min. panel thickness ( d_p )	12,5 mm
Anchor length ( l )	30 mm
Min. bolt penetration ( l_E,min )	35 mm
Wood and chipboard screws ( d_s )	4.5 x 40 mm
Drive	PZ2

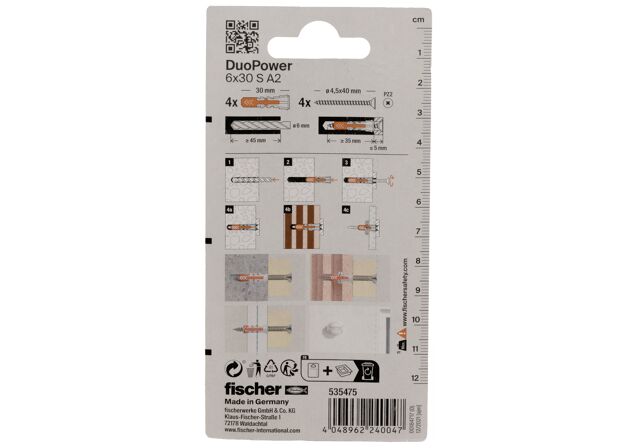

Contents	4 x DuoPower 6 x 30 4 x Countersunk head screw 4.5 x 40 A2
Amount	4 pcs
Packaging	Blister card
GTIN (EAN-Code)	4048962240047
