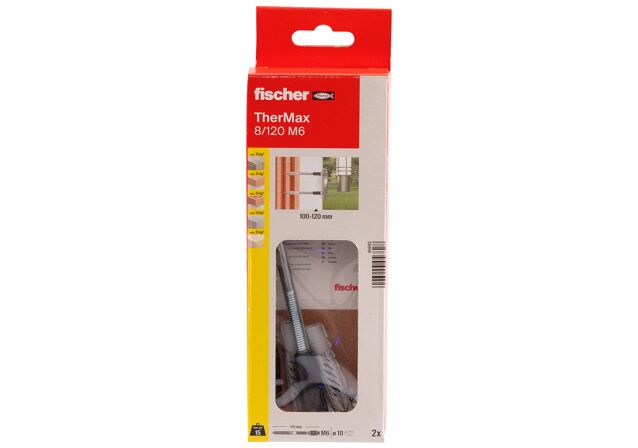

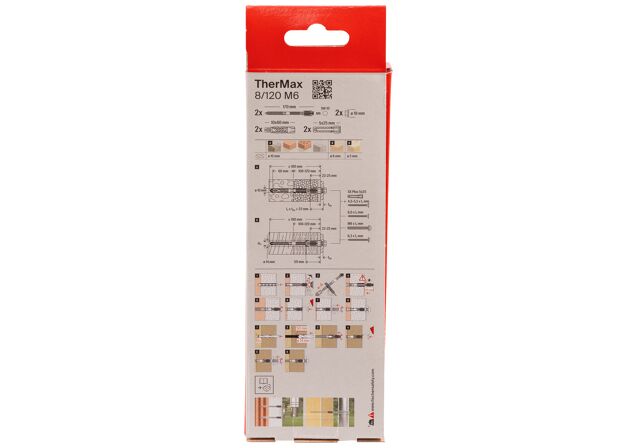

fischer stand-off installation TherMax 8/120 M6 (2)

Name: fischer stand-off installation TherMax 8/120 M6 (2)
Brand: fischer

Produktvarianter

Download of image data

Top Features

No thermal bridge due to the anti-cold cone.
Installation without setting tool. This saves time.
Self-milling plastic cone.
Exact alignment of the attachment without pressure marks and damage to the ETICS.
Suitable for all building materials.

The thermally separated stand-off installation in external thermal insulation composite systems (ETICS).

Advantages

The stand-off installation allows for the fixture to be adjusted to the exact position required, which avoids pressure marks and damage to the ETICS.
The plastic cone creates a thermal barrier between the fixture and the inner fixture, and offers an energy-optimised fixing.
The glass-fibre-reinforced plastic cone cuts its own way through the ETICS with a positive fit, and allows for a simple and fast installation without the need for any special tools.
Combining with the universal plug UX provides secure anchoring in the substrate.
Without the UX plug, direct installation in a wooden substrate is possible after pre-drilling, too.

The fischer stand-off insulation system TherMax 8 is a solution for fixing into external walls without a thermal bridge in ETICS. The stud screw with the glass-fibre reinforced cone cuts its own way through the plaster into the insulation. During mounting, the stud screw is rotated into the universal fixing UX and is therefore secured within the building material. The anti-cold cone at the tip of the stud screw creates a thermal barrier and holds the outer fixing. The TherMax fixes light loads such as lights, letterboxes, or lightning conductors to concrete, aerated concrete, and masonry from solid and perforated brick.

Functionality

The TherMax 8 is suitable for pre-positioned installation.
The self-tapping, glass-fibre-reinforced cone cuts its own way through the plaster into the insulation during installation.
The anti-cold cone uses a thermal barrier to minimise heat losses.
Installation does not require any special tools.
For use in wood without a plug, the wood (see the footnote beneath the load table) and plaster must be pre-drilled: TherMax 8: d02 = 14 mm, h02 = 50 mm.
The assortment offers connection possibilities using metric screws M6, self-tapping screws 6.3 mm, chipboard screws 6.0 mm, and 4.5-5.5 mm chipboard screws when using a SX Plus 5 plug.

Se monteringsanvisning som PDF

Mounting Strip 1 Picture

1 / 8

Mounting Strip 2 Picture

1 / 6

Load Table

pdf,

Stand-off installation TherMax 8 and 10 - Recommended loads of a single anchor in concrete and masonry.

Load Table

pdf,

Stand-off installation TherMax 8 and 10 - Recommended tensile loads for a single anchor in wood.

Load Table

pdf,

Stand-off installation TherMax 8 and 10 - Recommended shear loads for a single anchor.

Installation Instructions

pdf,

TherMax

Marketing Documents

pdf,

TherMax.

Drill diameter ( d₀ )	10 mm
Drill hole depth ( h₀ )	180 mm
Max. thickness of non-bearing layer ( e )	100 - 120 mm
Anchorage depth ( h_ef )	60 mm
Cover cap-ø ( ADK )	18 mm
Width across nut	10 mm
Chipboard / metric / sheet metal screw	4.5 - 6.0 / M6 / 6.3
Contents	2 x TherMax 2 x UX 10 x 60 2 x SX Plus 5 x 25 2 x Cover cap
Packaging	Folding box
Amount	2 pcs
GTIN (EAN-Code)	4006209456828

fischer stand-off installation TherMax 8/120 M6 (2)
