fischer Zykon panel anchor FZP II 15 x 15 M8i

Name: fischer Zykon panel anchor FZP II 15 x 15 M8i
Brand: fischer

Variantet e produktit

Download of image data

Top Features

Perfect for pre-installed panels. Including dust protection caps.
Flush installation of panels with minor tolerances or stand-off installation with additional sleeve.
For all natural stones class I-IV.
Stress-free fixing enables high loads and use of thin panels.
Sleeve made of carbon fibre reinforced polyamid.

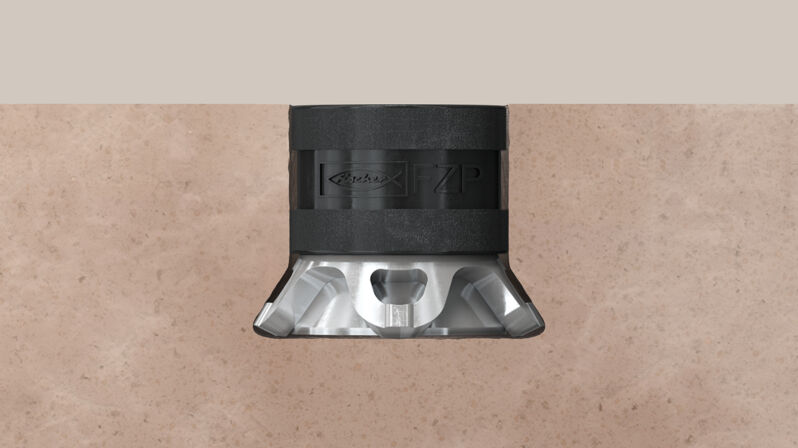

The undercut anchor with an internal thread for M8 threaded screws in natural stone façade panels.

Advantages

The flush-mounted anchor allows for easy, economical construction of reveals.
Depending on the application, the user can choose between flush installation with an absolute anchoring depth, for instance for reveal panels, and stand-off installation technology with a constant remaining wall thickness that serves as a reference dimension to compensate panel thickness tolerances.
There is no protruding external thread, allowing a space-saving transportation of pre-fabricated façade panels.
The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
The fixing is not externally visible, creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.

Concealed flush or stand-off installation solution with internal thread for natural stone façade panels. This technology can be used for both flush mounting of calibrated panels or reveal panels and to adjust tolerances in panel thicknesses by using the stand-off installation technology. Due to the integrated internal thread, there is no protruding external thread, allowing the panels to be prefabricated and transported in a space-saving manner. This improves the economic efficiency and flexibility of the system.

Functionality

The hole is either drilled to a constant reference dimension for the remaining wall thickness (RWT) or with an absolute anchoring depth.
The anchor can be installed flush or stand-off.
The compensation of panel thickness tolerances results in a completely flat façade surface.
Wet diamond drilling: first cylindrical, then conical - to create the undercut.
Inserting the undercut anchor in the cylindrical-conical undercut hole.
Expanding the undercut anchor by "pressing down" the washer using the setting tools.
Stress-free and geometrical inter-locking fixing.

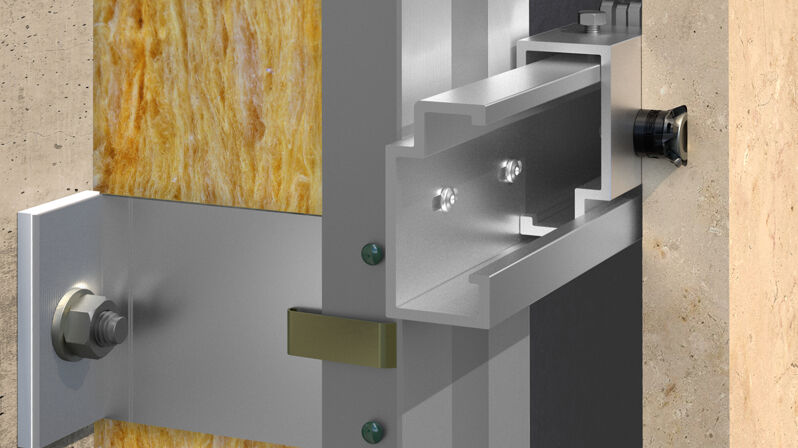

Mounting Strip 1 Picture

1 / 4

ETA-approval
Min. panel thickness	25 mm
Embedment depth ( h₁ )	15 mm
Total length ( l )	15 mm
Installed anchor length ( a )	15 mm
Remaining thread length ( b )	0 mm
Thread ( M )	M8
Cylindrical diameter ( d₀ )	15 mm
Undercutdiameter ( d₁ )	17,5 mm
System	—
Contents	Including dust protection cap
Amount	250 pcs
GTIN (EAN-Code)	4048962269833
