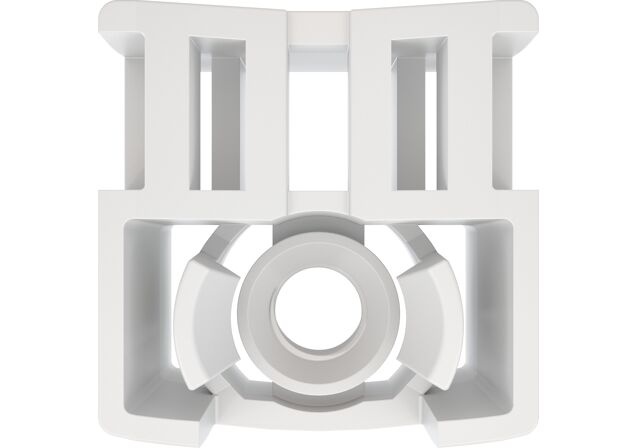

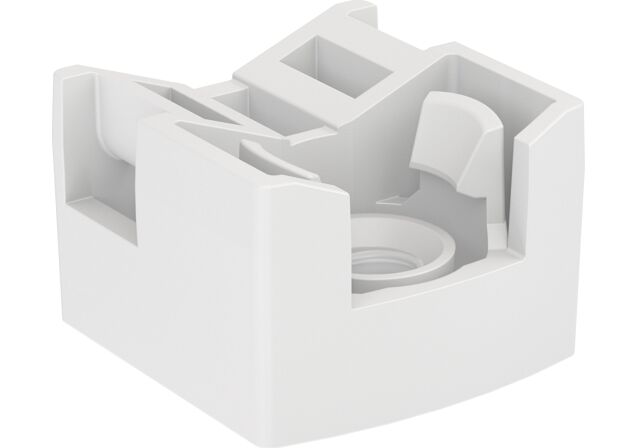

fischer cable tie base direct fastening FF DF

Name: fischer cable tie base direct fastening FF DF
Brand: fischer

Variantet e produktit

Download of image data

Fastening ties for bundling and fixing cables and pipes to the substrate with fischer direct fastening tools.

Advantages

The base of the fastening tie FF DF is fixed to the substrate using the fischer direct fastening tool FGC 100/FXC 85 or screw and plug.
The combination of fastening tie FF DF and fischer direct fixing tool enables one-hand installation and therefore allows faster installation than with standard dowel installation
Several cables or pipes can be bundled and fastened with the fastening tie FF DF.
Variably adjustable diameter of the tie loop.

With the fischer fastening tie direct fastening FF DF cables and pipes can be bundled and fixed directly to the substrate with its base and DFN/DFNH nails. This enables a secure application by attaching lateral to the e-fix nose.

Applications

Electric cables
Flexible and rigid electrical conduits
Armored steel conduits

Building materials

When using the DFN nails

Soft concrete
Solid brick
Sand-lime brick

When using DFNH nails

Hard concrete >C 30/37
Steel

When using screws and plugs

Concrete
Solid brick
Solid sand-lime brick
Other substrates depending on the fastener used

Detajet (materialet e ndërtimit, ngarkesat, etj.) të çdo miratimi të disponueshëm zbatohen. Dokumentet e mëtejshme mund të gjenden në Qendra e shkarkimit.

Functionality

The fixing base of the fastening tie FF DF can be fixed to the substrate either with direct fastening or with plugs and screws.
The fastening tie is designed for fixing with the fischer direct fastening tools FGC 100 and FXC 85.
The fastening tie is placed lateral to the e-fix nose.
Variable bundling of cables and pipes thanks to the adjustable diameter range of the loop from 16-63 mm.

Mounting Strip 1 Picture

1 / 6

Mounting Strip 2 Picture

1 / 4

Mounting Strip 3 Picture

1 / 6

Mounting Strip 4 Picture

1 / 4

Length ( l )	24,5 mm
Colour	RAL 7035 cable grey
Height ( h )	15,5 mm
Width ( b )	22,5 mm
Hole-ø ( D )	5,2 mm
Height mounting part ( t_fix )	9 mm
Max. nail shank diameter Direct fastening ( d_DF )	3 mm
Packaging	Polybag
Amount	100 pcs
GTIN (EAN-Code)	4048962520811
